Domestic Tanks

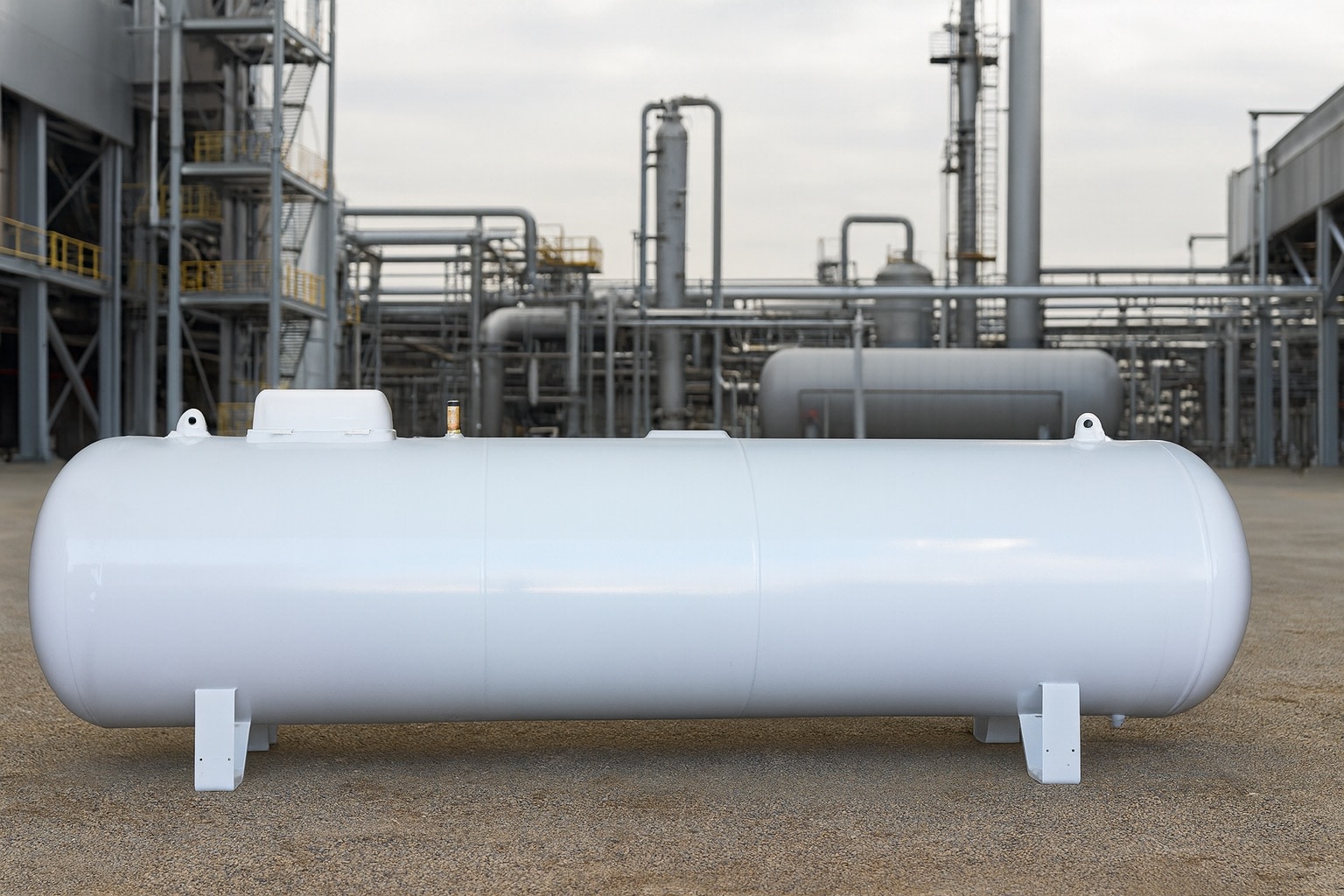

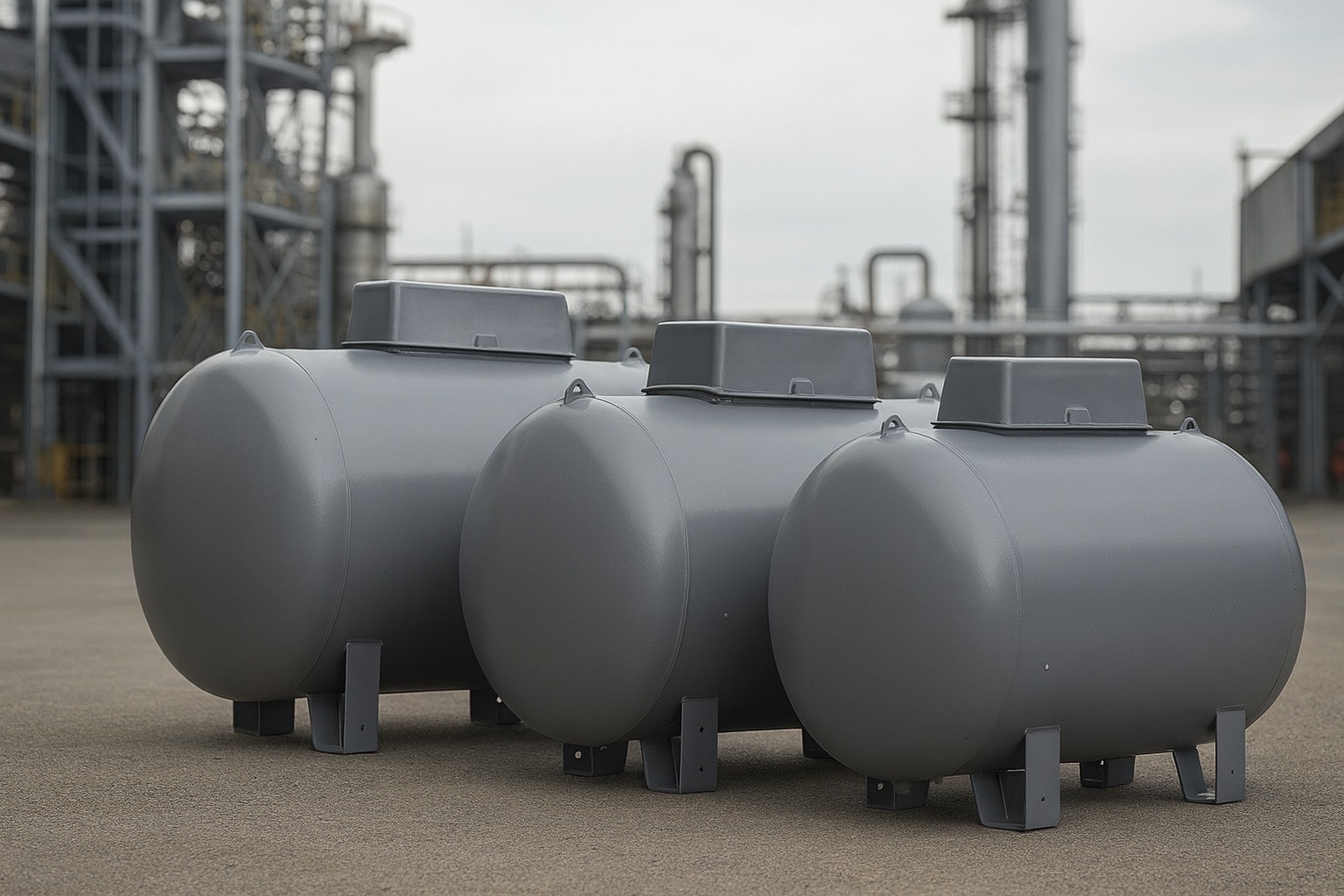

Domestic tanks are economical and practical storage tanks used to supply propane or LPG mixtures as fuel for domestic applications such as heating, cooking, hot water supply, or small industrial applications. Domestic tanks come in different models depending on whether they are installed above ground or below ground.
Our designs comply with EN12542, EN 13445, and PED. Upon customer request, design and manufacturing can be performed according to AD2000 Merkblätter, ASME, CODAP, BS5500, or other standards.
General Features
- It is generally manufactured in capacities ranging from 0.5 m³ to 5 m³.
- It is used as an energy source in residential areas, small businesses, and rural areas.
- Above-ground or underground installation options are available.
- Manufactured in accordance with standards such as EN 13445 and EN 12542.
- Equipped with safety valves against excessive pressure.
- Easy to install, low maintenance costs.
- Durable with corrosion-resistant paint and coating systems.
Technical Specifications
Standard Tank Volumes
- 500 liters
- 1,000 liters
- 1,750 liters
- 2,000 liters
- 3,000 liters
- 3,000 liters
- 5,000 liters
- 7,000 liters
- 10,000 liters
Standard Domestic Tank Accessories
- Multi-valve
- Safety valve and drain plug.
- Magnetic level indicator.
- Liquid filling valve.
- Liquid outlet and drain plug.
- Drain plug.
- Accessory storage box.
Design Features
Design Code EN12542, EN13445 + PED(2014/68/EU)
| Design Temperature | –20°C / +50°C |
|---|---|
| Design Pressure | 17 bar |
| Test Pressure | 24.4 bar |
| Bomb Type | Elliptical |
