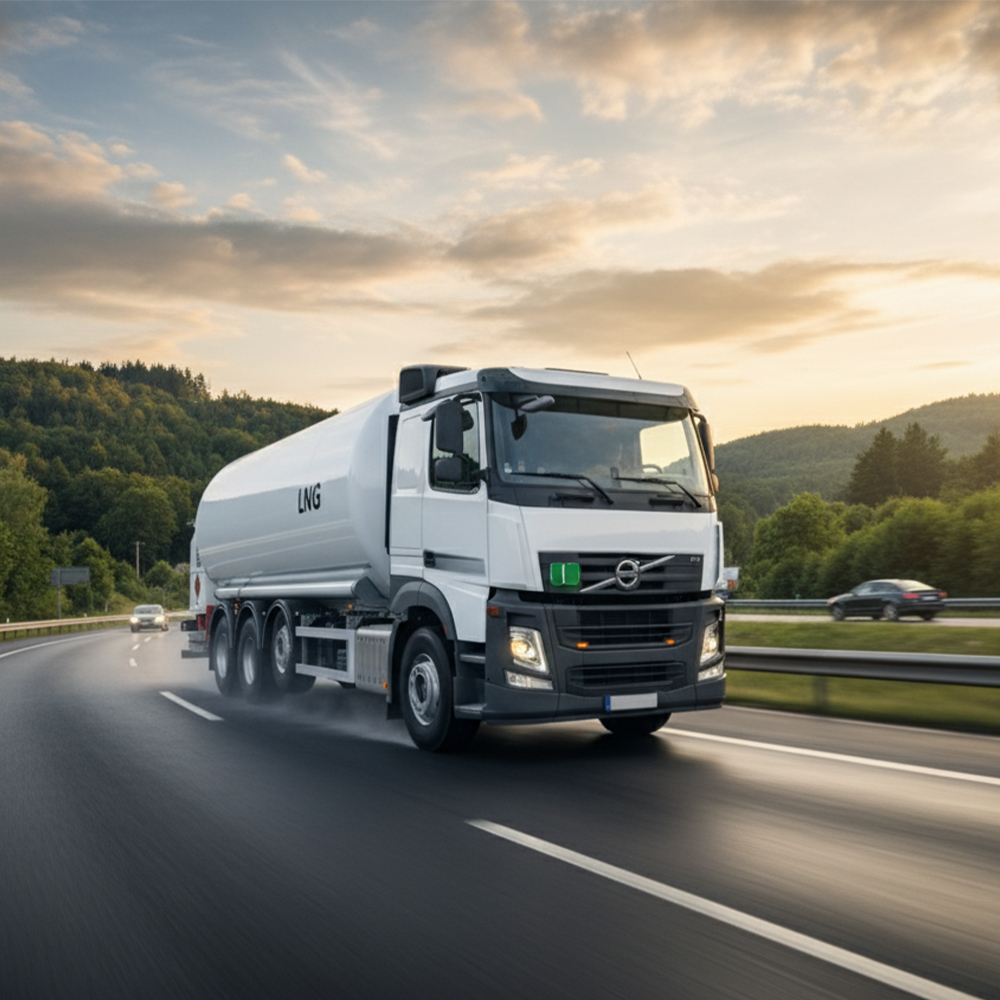

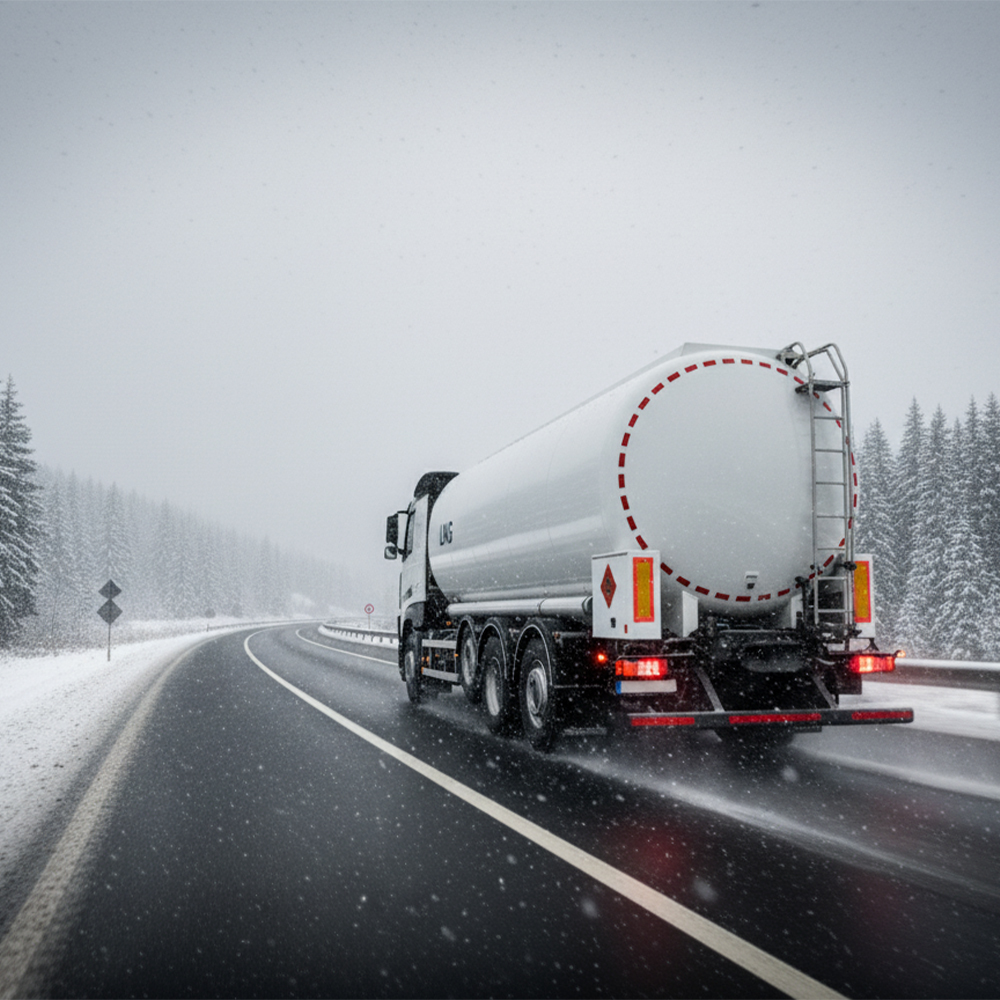

LNG Truck Mounted Transport Tanks
These systems enable the transportation of liquefied natural gas (-162°C) using special cryogenic tanks mounted directly onto truck chassis. Thanks to their double-walled and vacuum-insulated construction, these tanks safely transport LNG over long distances with low evaporation rates. They are an ideal solution for LNG shipments to hard-to-reach areas, mobile energy solutions, and small-scale LNG distribution.
GENERAL FEATURES
-
Manufactured in compliance with international standards such as ADR, EN 13530, and ASME, and designed with driver safety and operational efficiency in mind.
- Cryogenic is designed to maximize the transport of liquefied natural gas, taking into account LNG density, which can vary from country to country. On-vehicle transport tanks are designed to deliver LNG to customer points more quickly and safely.
Technical and design features
-
Capacity: Typically transport volumes between 20 m³ and 60 m³
-
Design pressure: 6–10 bar
-
Operating temperature: Temperature resistance up to -162 °C
-
Material: EN 10028 or ASME certified stainless steel inner tank
-
Surface coating: External coating in accordance with EN 12944 and sandblasting SA 2 ½
-
Insulation: Vapor control through perlite-filled and vacuum-insulated construction
-
Certification: ADR / TPED / CE / ASME U or U2 stamped
| Design Code | EN 13530 – ADR / TPED (2010/35/EU ) |
|---|---|
| Max. Permissible Working Pressure | 6 bar- 9.1 Bar |
| Design Pressure | -196°C |
| Inner Tank Material | Stainless Steel (EN 10028-7) |
| Outer Shell Material | Carbon Steel (EN 10025/EN10028-3) |
| Insulation | |
| Volume | Super Insulation & Vacuum |
| 6 m³- 15 m³ |
