LNG Semi Trailer Transport Tanks

High-strength cryogenic tank for the safe transport of LNG.

LNG Semi-Trailer Transport Tanks

LNG semi-trailer transport tanks are mobile cryogenic tanks designed for the safe and efficient transport of liquefied natural gas (-162°C) by road. Their double-walled construction, vacuum insulation, and high pressure resistance ensure that the product is transported without deterioration in the cold chain and with minimal vaporization.

GENERAL FEATURES

  • Cryogenic structure specially designed for LNG transportation

  • Manufactured in compliance with international standards such as ADR, ASME, and EN 13530

  • Vacuum-assisted double-walled insulation system

  • Air suspension, 3-axle chassis structure

  • Fully compatible with ABS/EBS braking systems

  • Automatic safety and control systems that enhance operator safety

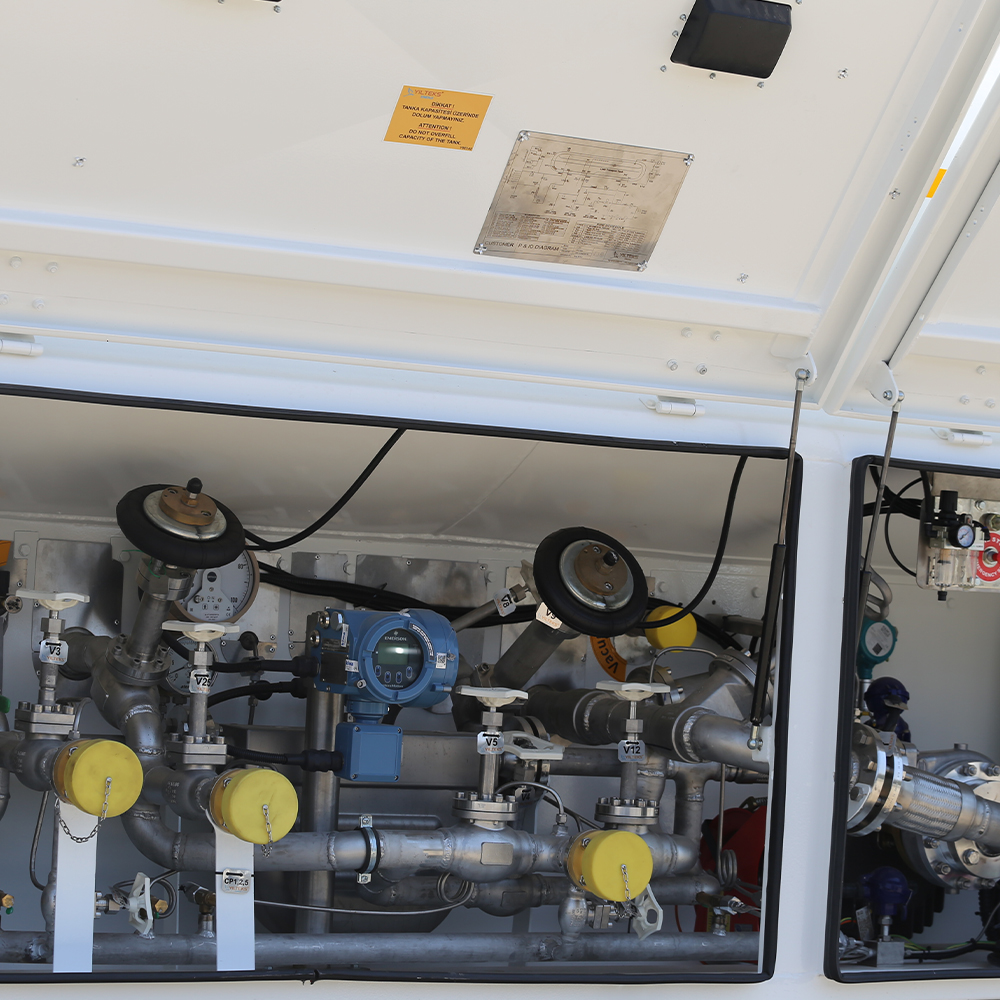

  • Ergonomic valve and piping design for easy discharge

  • Technical and Design FeaturesCapacity: Typically 20 m³ – 60 m³ transport volumeDesign Pressure: 6 – 10 barOperating Temperature: Low temperature resistance down to -162°CMaterial: EN 10028 or ASME certified stainless steel inner tankSurface Coating: EN 12944 compliant external surface paint system and SA 2 ½ blastingInsulation: Perlit-filled and vacuum-insulated structure with vapor controlCertification: ADR / TPED / CE / ASME U or U2 stamped
    Design Code EN 13530 – ADR / TPED (2010/35/EU/ )
    Max. Permissible Working Pressure 6 bar- 9.1 Bar
    Design Pressure -196°C
    Inner Liner Material Stainless Steel (EN 10028-7)
    Outer Shell Material Carbon Steel (EN 10025/EN10028-3)
    Insulation Super Insulation & Vacuum
