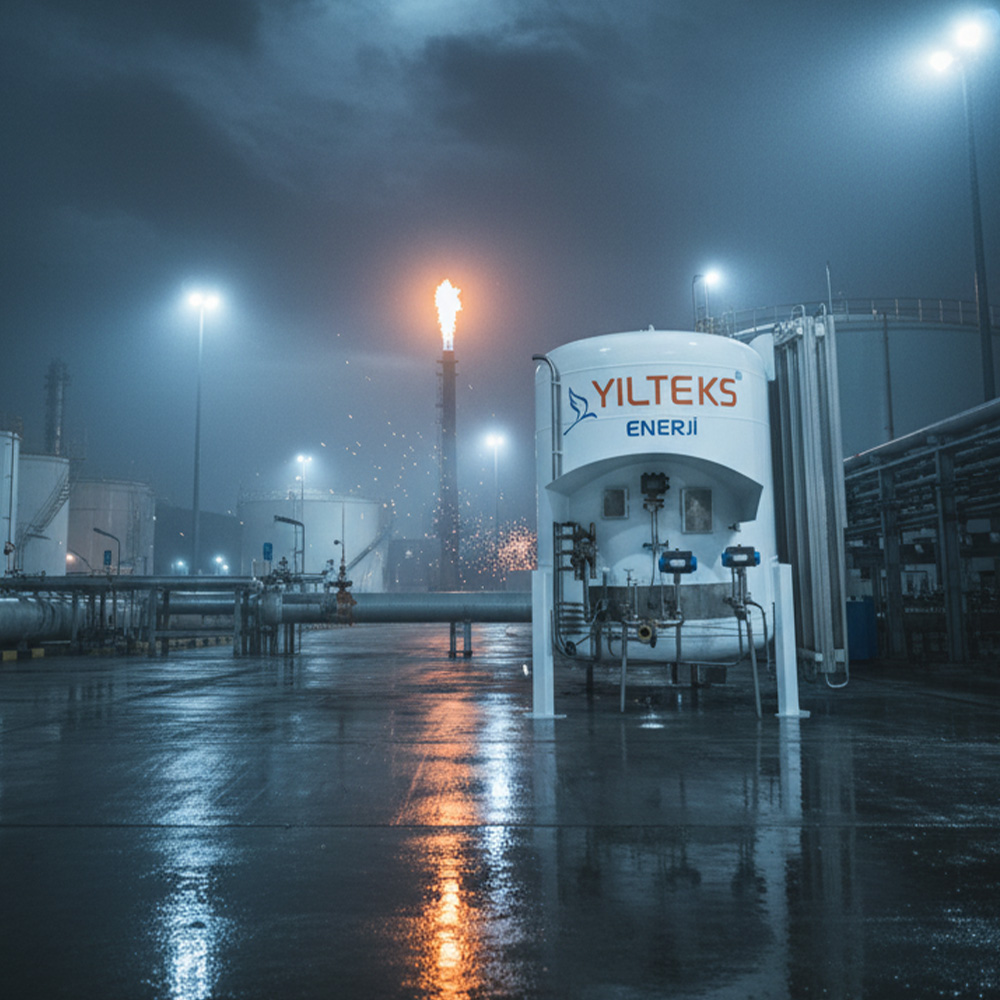

LNG Compact & Rail-Mounted Systems
These portable and rapidly deployable solutions offer liquefied natural gas storage, regulation, and regasification processes on a single module. Thanks to their skid structure, they do not require field installation and are ideal for mobile energy needs. They are used in industrial facilities, temporary construction sites, LNG filling stations, and rural energy applications.
GENERAL FEATURES
-
Modular and portable design
-
Integrated LNG storage, vaporization, and pressure regulation systems
-
Quick installation, low operating costs
-
Equipped with automatic control and safety systems
-
Customizable solutions in various capacities (e.g., 3m³ – 60m³)
-
Solar energy or generator-supported system options
-
Enables LNG to be regasified and used as natural gas
Design and Technical Specifications
- Design Temperature: Operation in low-temperature environments down to -162°C
- Design Pressure: 6 – 10 bar
- Insulation: Vacuum-insulated double-walled tank structure
- Material: EN 10028 or ASME certified cryogenic steel
- Automation: PLC-controlled automatic system, remote monitoring support
- Standards: Compliance with EN 13458, ASME, ADR, PED, TPED, CE certificates
- Components: LNG tank, vaporizer, pressure regulator, control panel, safety systems
