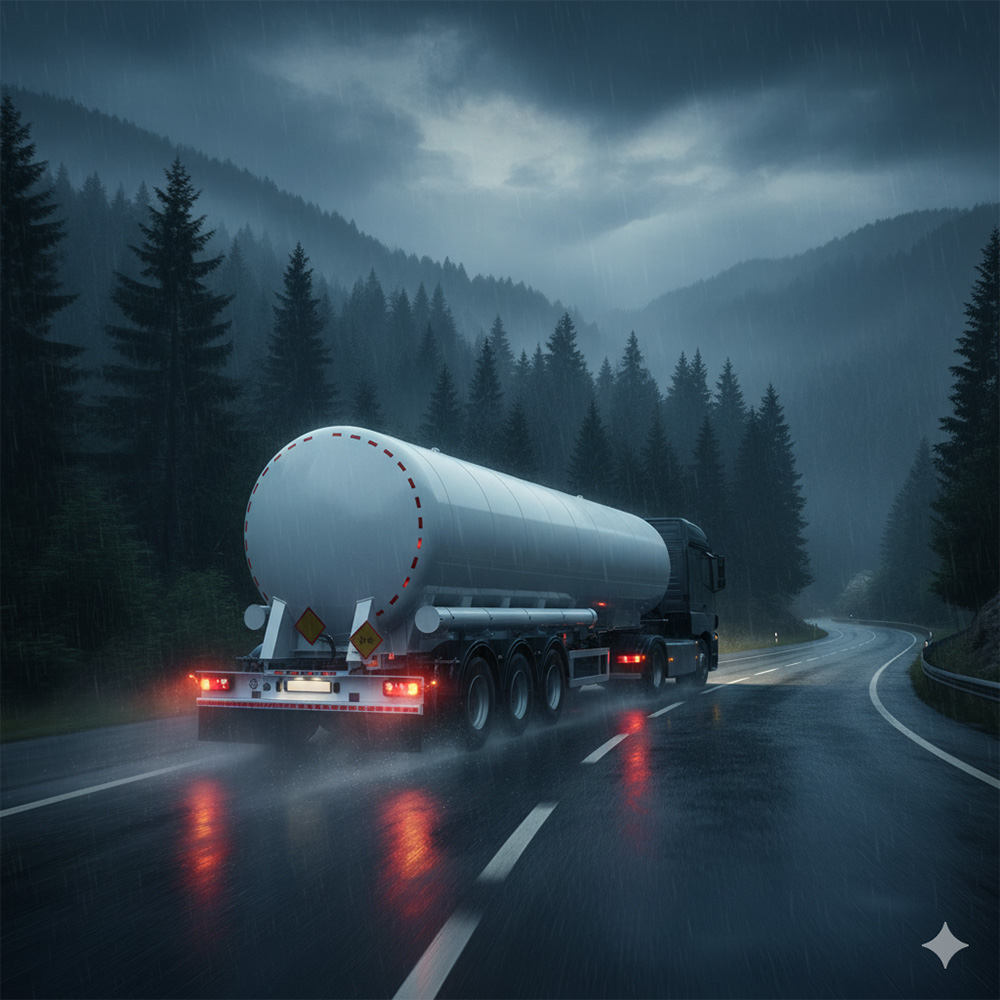

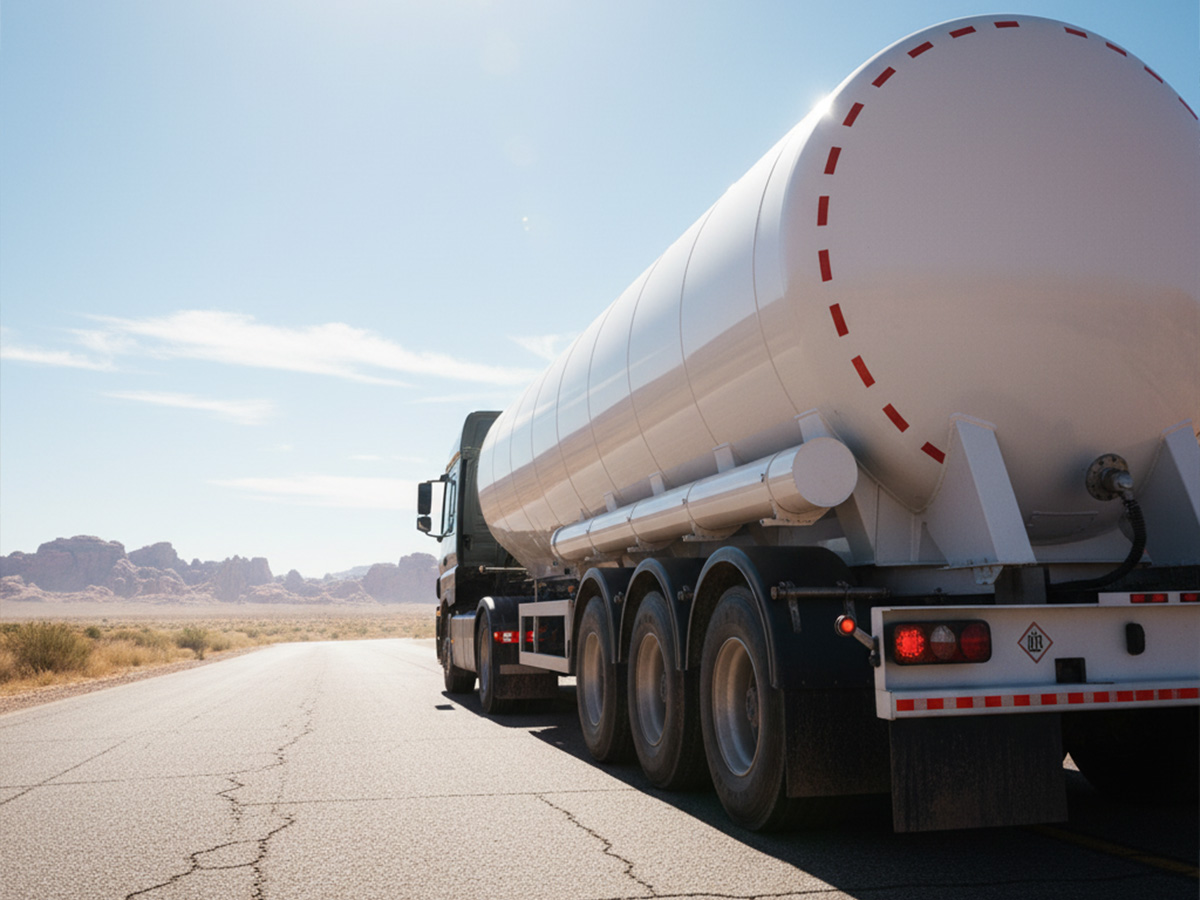

LCO2 Truck Mounted Transport Tanks
LCO₂ truck-mounted transport tanks manufactured by Yılteks Energy are designed for the safe and efficient transport of liquefied carbon dioxide (LCO₂) at a temperature of -20°C and a pressure of approximately 22 bar. Specially developed for mobile transportation needs, these systems are integrated directly onto the truck chassis, providing maximum mobility and logistical flexibility. They stand out for their high insulation performance, production quality in line with international standards, and operator safety.
GENERAL FEATURES
- Custom design and installation for truck chassis
- High-strength structure suitable for transportation
- Low evaporation rate with vacuum-assisted insulation
- Manufactured in compliance with ADR, TPED, ASME, and EN 13530 standards
- Automatic safety systems and control panel
- Simple interface filling and emptying equipment
- Optimized weight and balance for mobile use
Design Features
- Design Code: Fully compliant with international road transport requirements in accordance with EN 14398 / EN 14025 + ADR.
- Inner Tank Material: Two different options are available depending on the application: Duplex stainless steel or carbon steel compliant with the EN 10028-3 standard. Maximum Permissible Working Pressure: Ensures safe operation up to 23 bar (stainless steel) and 24 bar (carbon steel) pressure.
- Design Temperature: Offers performance in a wide temperature range from -40°C to +50°C.
- Insulation: High-density foam insulation supported by an aluminum jacket ensures minimal vaporization and energy loss.
